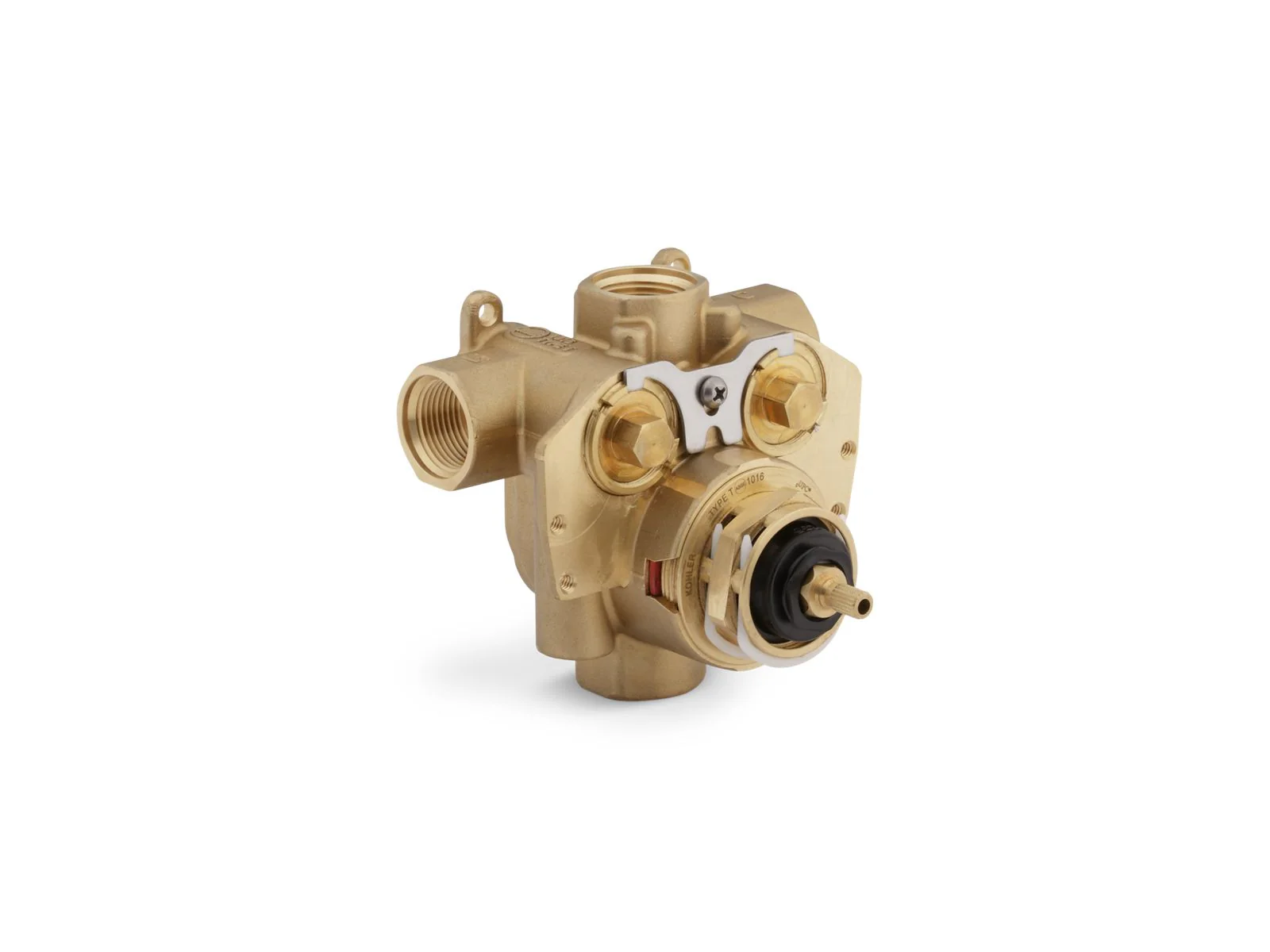

Take showering beyond the ordinary with this 3/4-inch MasterShower thermostatic valve. When paired with compatible trim, this valve delivers a high-temperature limit stop for added safety and a high-flow rate for precise, consistent temperature control.

---

• High-flow thermostatic mixing valve
• Thermostatic technology automatically maintains outlet temperature during water pressure fluctuations and/or inlet water temperature changes
• Single-handle temperature control
• 17.2 gpm flow rate at 45 psi (3.1 bar)
• 3/4" female NPT inlet connections
• Two 3/4 female NPT outlet connections
• Service stops with integral filters
• Antiscald protection
• Adjustable comForte setting (preset at approximately 104°F)
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Requires volume control valve trim (sold separately)
• Requires thermostatic trim (sold separately)

---
