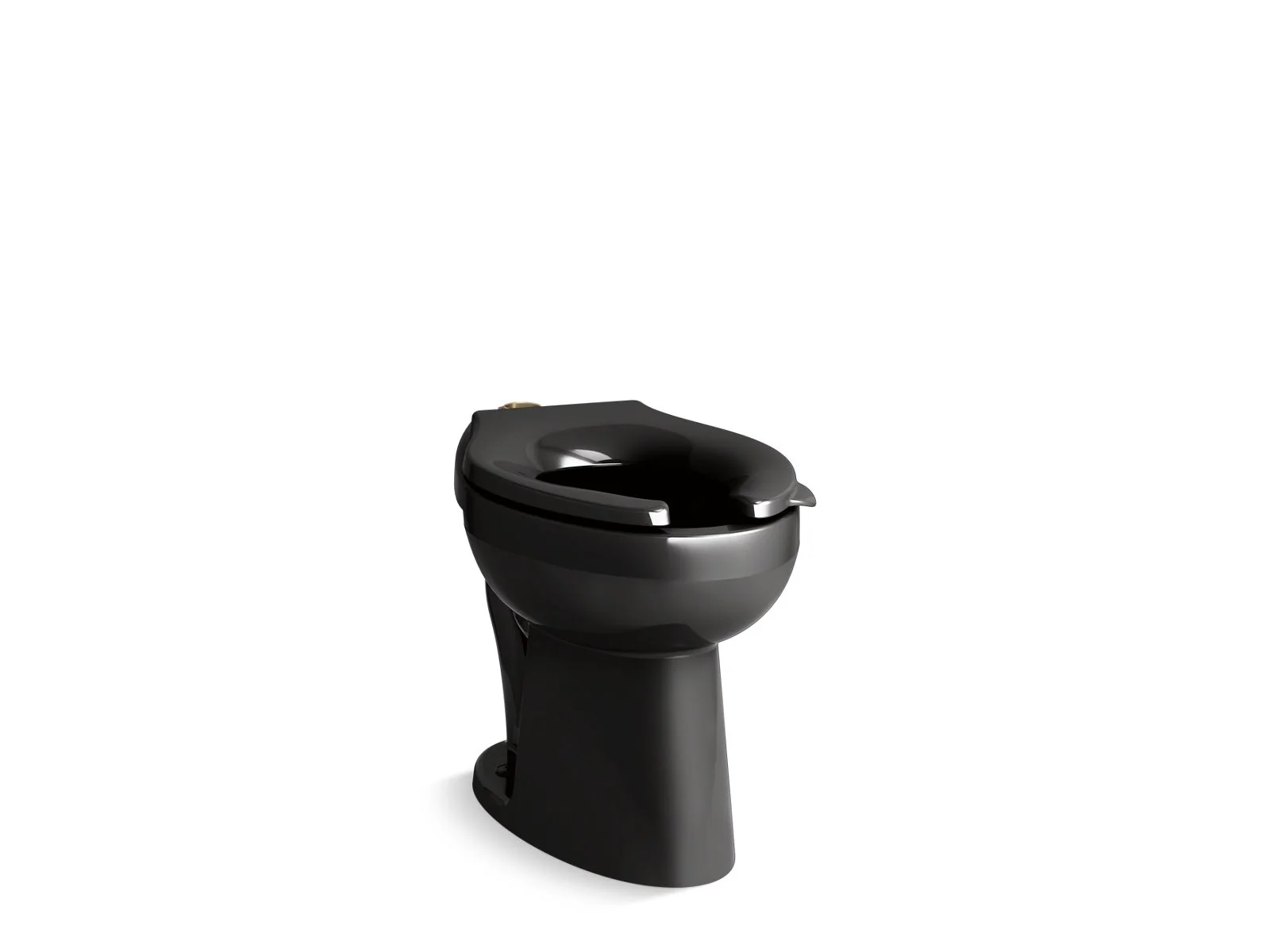

The Highcliff Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design. Measuring 16-7/8" to the top of the rim, the Highcliff Ultra meets both ADA and CSA height requirements. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Highcliff Ultra top spud is listed from 1.0 to 1.6 gpf and performs well at every flush interval, making it uniquely effective with dual flush valves. It has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.

---

• Elongated bowl offers added room and comfort
• 1-1/2" (38 mm) top spud
• 2-1/8" (54 mm) fully glazed trapway
• 10" x 7" (254 mm x 178 mm) water surface
• 1.0 gpf (3.8 lpf), 1.1 gpf (4.2 lpf), 1.28 (4.8 lpf), or 1.6 gpf (6.0 lpf) depending on flushometer specified
• Also available with antimicrobial finish K-96057-SS
• 10" or 12" (254 or 305 mm) rough-in
• Supports static load of 2,500 lbs

---
