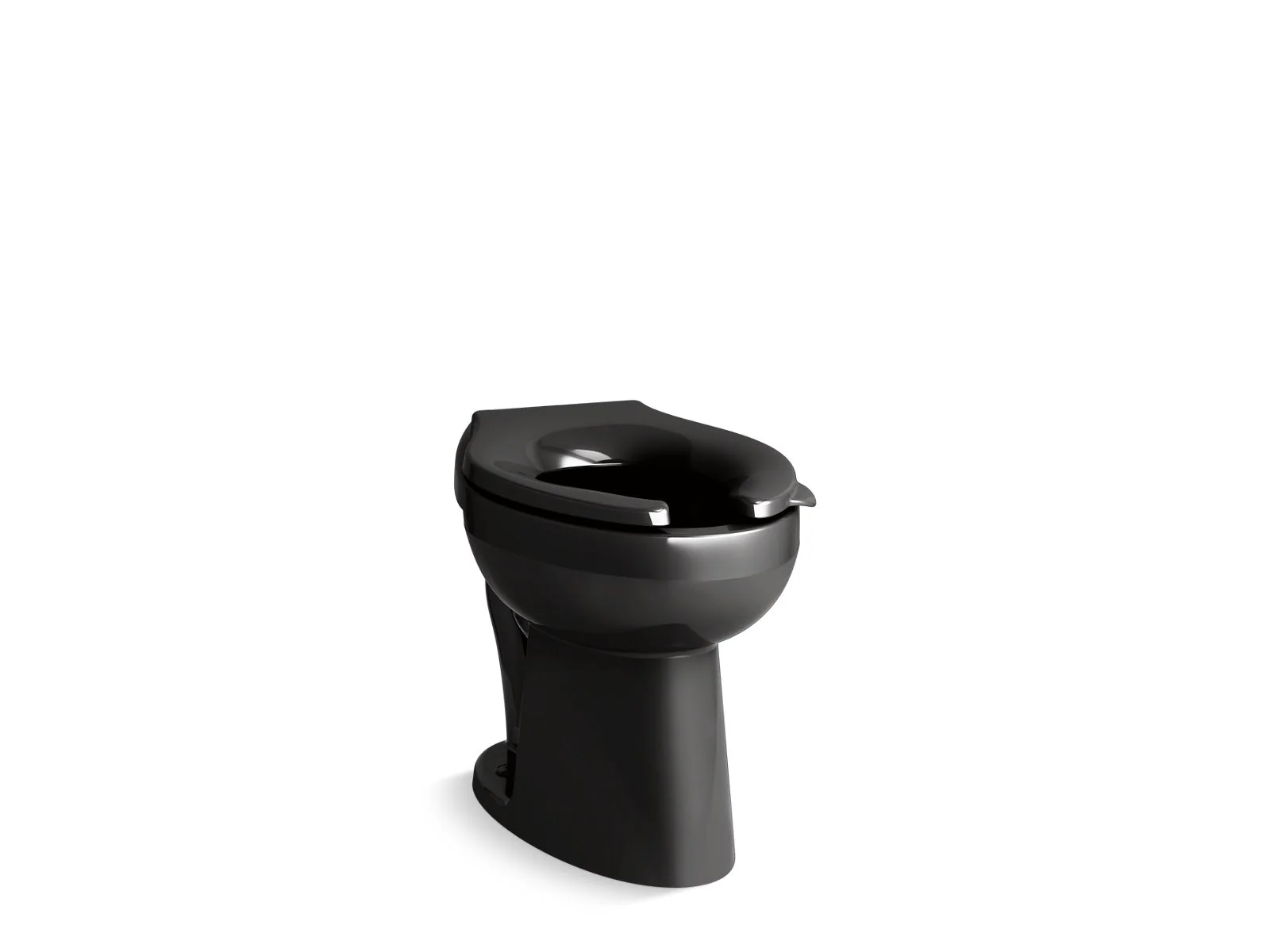

The Highcliff Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design. Measuring 16-7/8" to the top of the rim, the Highcliff Ultra meets both ADA and CSA height requirements. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Highcliff rear spud is listed from 1.28 to 1.6 gpf and performs well at either flush volume. It has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.

---

• Elongated bowl offers added room and comfort
• 1-1/2" (38 mm) rear spud
• 1.28 gpf - 1.6 gpf (4.8 - 6.0 lpf) flush range
• 10" x 7" (254 mm x 178 mm) water surface
• Also available with antimicrobial finish K-96058-SS
• 2-1/8" (54 mm) fully glazed trapway
• Supports static load of 2,500 lbs

---
