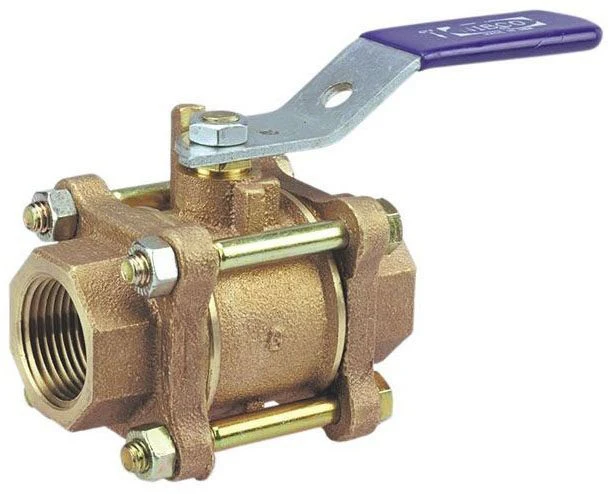

Nibco T-595-Y_3/4 Ball Valve

• Ball Valve
• Model T-595-Y
• Type 3-Piece
• Applicable Standard Mss Sp-110
• Actuation Type 1/4 Turn, Lever Handle
• Nominal Size 3/4 Inch
• End Connection Female Threaded X Female Threaded
• End To End Distance 3 Inch
• Ball Material Astm B124 C37700 Brass Alloy/Astm B16 C36000 Hard Chrome Plated Brass Alloy
• Body Material Astm B584 C84400 Bronze Alloy
• Stem Material Astm B371 C69430/Astm B99 C65100 Silicon Bronze Alloy
• Seat Material Ptfe
• Seal Material Ptfe Packing
• Handle Material Zinc Plated Clear Chromate Plastisol Coated Steel
• Port Type Full
• Temperature Rating 400 Deg F
• Pressure Rating 600 Psi Non-Shock Cwp, 150 Psi Swp
• Inclusions/Features Blowout Proof Stem Design, Bronze Trim, Brass Threaded Pack Gland, Insulated Handle, Thrust Washer, Bolt, Nut, Dezincification Resistant
• Application Commercial, Mechanical, Industrial, Compressed Air, Chilled Water
• Additional Information Packaging Quantity 5 Per Box
• Warranty 5 Year Limited
